External User Authentication Example Configuration for Azure Active Directory

External User Authentication Example Configuration for Azure Active Directory

#111420

You can use the following process to setup Azure Active Directory (AD). You need to register Densify as a web application in your Azure AD and then provide the following information to Densify:

• Application (client) ID
• Directory (tenant) ID
• Client secret (password)

Register an Application

You must have permission to manage applications in Azure AD. i.e. Application administrator or Application developer, etc.

1. In the Azure portal. If you have access to multiple tenants, use the Directories + subscriptions filter in the top menu to switch to the tenant in which you want to register the application.

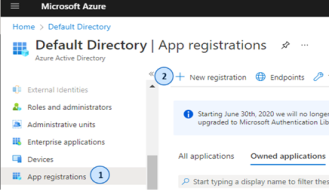

2. Navigate to Azure Active Directory > App Registrations > New registration.
Figure: Creating a New Registration

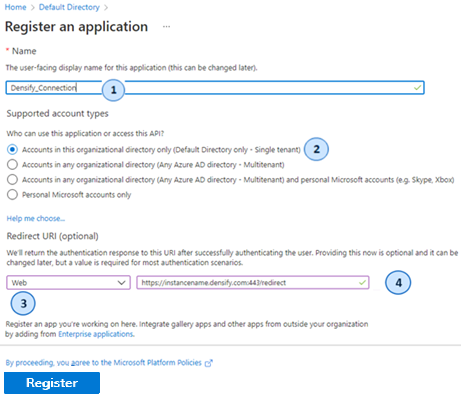

3. In the Register an application pane, enter the following information:
• The Name of the application (i.e. Densify_Connection)
• Specify who can use the application. You can leave the default setting, Accounts in this organizational directory only (Default Directory only – Single tenant).
• You do not need to add anything under the Redirect URI. You can will configure the URIs in the next section.
4. Once you have entered the required information the Register button becomes available. Click Register to complete the process.
Figure: Creating a New Registration



5. Once you have completed the registration, you will be directed to the overview page for your new application registration.

New app registrations are hidden to other users by default. Refer to Microsoft.com for details on enabling your app registration for other users, if required.

Obtaining the Application and Directory IDs

1. In the Azure portal, navigate to Azure Active Directory > App Registrations.
2. Select your new App Registration and copy the following values:
• Application (client) ID
• Directory (tenant) ID

You need to provide these values to Densify to complete the authentication process.

Figure: Obtaining the Required IDs

Configuring the URIs

A redirect URI is the location where the Microsoft identity platform redirects a user's client and sends back the security tokens after authentication.

1. In the Azure portal, in App registrations, select your application registration.
2. Select Authentication from the side menu.
3. Under Platform configurations, click Add a platform and then choose Web applications > Web.

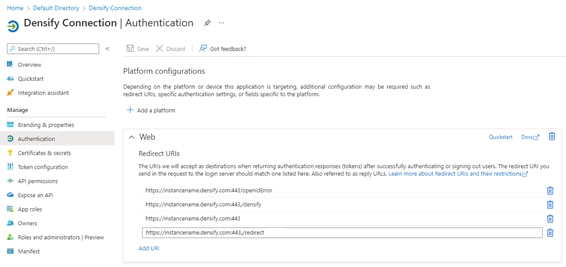

4. Under Redirect URIs, add the following URIs:

Note:  These are examples only. Contact Densify for the actual URIs.

• https://<instancename>.densify.com:443/redirect
• https://<instancename>.densify.com:443/
• https://<instancename>.densify.com:443/densify
• https://<instancename>.densify.com:443/openIdError
5. Click Add URI to add each entry. You should have a total of 4 URIs.
Figure: Adding Redirect URIs



6. Click Save to commit all your information.

Obtaining the Credentials

The credentials generated here allow Densify to authenticate as itself, requiring no interaction from the user at runtime.

A client secret is sometimes called an application password. It is a string value that Densify can use in place of a certificate to identity itself.

1. In the Azure portal, in App registrations, select your application registration.
2. Navigate to Certificates & secrets > Client secrets > New client secret.
3. Add a description for your client secret. i.e.Densify-Client-Secret
4. Select an expiration for the client secret or specify a custom lifetime. Please note the following:
• Client secret lifetime is limited to 24 months, or less.
• Microsoft recommends that you set an expiration value of less than 12 months.
• You will need to renew the secret prior to the expiry date and provide the new value to Densify each time the value expires.
5. Click Add to save your settings and to generate the client secret.
Figure: Copying Client Secret Value

Record the displayed value, as this value will not be displayed again once you leave this page and you need to provide this value to Densify.

Configuring the API Permissions for the Connection

In this section, you provide Densify, now registered with the Microsoft identity platform with access to your own web API. You also provide the client app access to Microsoft Graph.

1. In the Azure portal, select App registrations and then select your application registration.

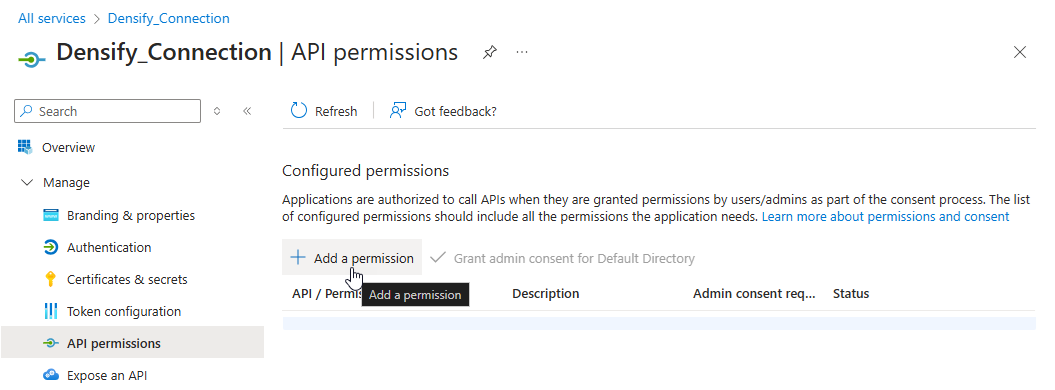

2. Navigate to Manage > API permissions > Add a Permission > Microsoft Graph.
Figure: Configuring the API Permissions



3. Choose ‘Delegated Permissions’. Microsoft Graph exposes many permissions, with the most commonly used permissions shown at the top of the list.

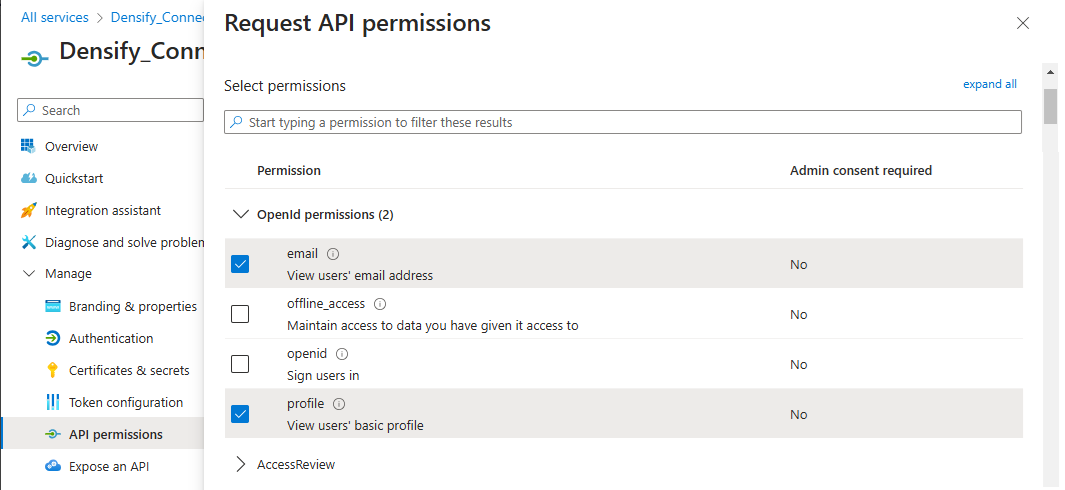

4. Under OpenId permissions, select:
• email—Allow Densify to view the users’ email address;
• profile—Allow Densify to view the users’ basic profile;
Figure: Configuring the API Permissions

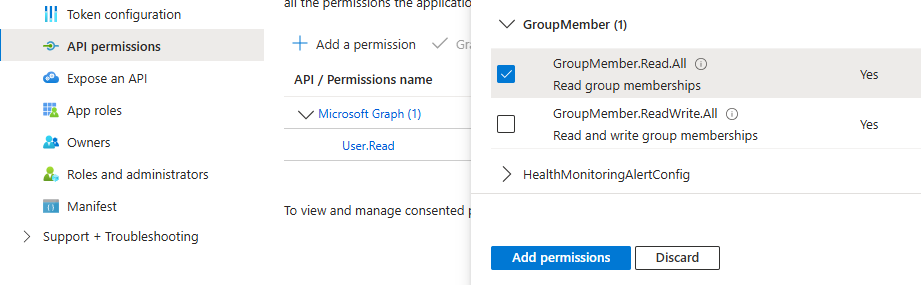

Under GroupMember select:

• GroupMember.Read.All—Allow Densify to read all user groups.

Figure: Configuring the API Permissions



5. Under User select:
• User Read—should already be delegated. Allows Densify to sign in and read user profile.

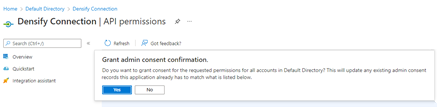

6. Click Add Permissions and choose Grant admin consent confirmation. Then click ‘Yes’ when prompted.
7. Click Yes when prompted.
Figure: Configuring the API Permissions - 2

Completing the Setup

You now need to provide the following information to Densify to complete the setup:

• Application (client) ID;
• Directory (tenant) ID;
• client secret value

These settings are all configured for you by Densify. Contact [email protected] for details.
