The Recommendation Filter Menu allows you to further narrow your results displayed in the cloud optimization reports.

To learn more, watch the video,

The Recommendation Filter Menu is only available when a supported report is displayed. See Reports Supporting the Recommendation Filter Menu for a list of reports that contain this filter.

Filters enabled in the Recommendation Filter Menu will persist for each cloud platform and for each session and is indicated by the filter-on icon (). For example, the recommendation filters you apply to an AWS optimization report is saved and also applied to another supported AWS optimization report until you log out of the Densify Console. After applying filters to an AWS optimization report, if you navigate to a different cloud platform screen, such as GCP, the Recommendation Filter Menu will be set to the filters enabled for GCP.

When you are in the aggregated Optimization Overview dashboard, there are fewer filter options that are only applicable to the displayed report content. When you open one of the cloud-specific dashboards or reports, there are additional filtering options applicable to the displayed content.

Opening and Closing the Recommendation Filter Menu

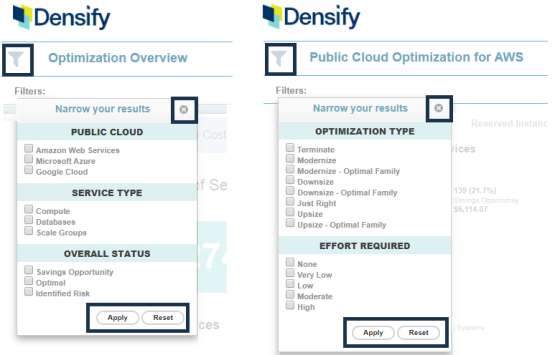

  1. Click on the filter icon () in the global page title to open the Recommendation Filter Menu.
    • The Recommendation Filter Menu is displayed as a floating menu on top of the Densify Console.
    • Move the Recommendation Filter Menu window to a different area on the Densify Console by dragging the Narrow your results title bar to your desired location. The location where you moved the Recommendation Filter Menu window is saved for the report for the duration of the session, even if you close the window.
  2. Click on the close icon (x) in the top-right corner of the Recommendation Filter Menu window to close the window.
  3. Alternatively, click on the filter icon to close the Recommendation Filter Menu window. The filter icon acts as a toggle to display or hide the Recommendation Filter Menu window.

  4. Click Apply to apply your selections or click Reset to clear all selected options.

Note: Closing the Recommendation Filter Menu does not reset the filters already applied to the report. The filters selected in the Recommendation Filter Menu are saved for that particular cloud platform for the duration of your session. You must reset the filters to view the complete set of results.

Applying Filters

When the filter options in the Recommendation Filter Menu are disabled, all the instances with recommendation data are displayed (subject to any guest filters applied).

Logically, the filter options within a section are OR'ed together. For example, if you select Optimization TypeModernize and Downsize then the report will show recommendation for instance types with an Optimization Type of Modernize or Downsize.

If you select options across sections, then logically, the options across sections are AND'ed together. For example, if you select Optimization Type > Upsize and Cost Impact > Monthly Savings > Above $500, then the report will show results with Upsize optimization type and monthly savings greater than $500.

To apply filters to your cloud optimization report, follow the steps below.

  1. Click on the filter icon () in the global page title to open the Recommendation Filter Menu.
  2. Select the filter options in the Recommendation Filter Menu.
    • You can multi-select all of the desired filtering options.
  3. Click Apply. The current tabular report, graph or chart is refreshed with the filters applied and the filter-on icon () is displayed.
    • If you navigate to another supported optimization report within the same cloud platform, the Recommendation Filter Menu closes, but the same filter settings will be applied to the newly displayed report on the same cloud platform.
    • If you navigate to another supported optimization report for a different cloud platform, the Recommendation Filter Menu closes, and the new cloud platform's filters are applied.
    • Note: For optimization reports that include all cloud platforms, such as Optimization Overview, the Recommendation Filter Menu instance is independent of the other cloud platform's Recommendation Filter Menu instance. Therefore, filters applied to any of the cloud platforms do not apply to the Optimization Overview dashboard.

    • On the Optimization Overview dashboard, settings that are defined on the Summary tab are retained and used on the Data tab.
    • The values, in the Summary bar, at the top of the overview dashboards, are based on the set of systems that are defined by your filter settings.

If, after applying the filter, no records meet the specified criteria, then you will see the message "No Data Available".

Resetting the Recommendation Filter

Since recommendation filters are saved for each cloud platform and each session, a reset option is available for you to quickly remove all filters for the current Recommendation Filter Menu instance.

  1. From the Recommendation Filter Menu, click Reset to remove all filters for the current report displayed on the Densify Console.
    • The filters are remove for the Recommendation Filter Menu instance of the current cloud platform. If you navigate to another supported optimization report in the same cloud platform, the filters are also removed.
    • The filter icon () is reset.
    • The filters in another cloud platform's Recommendation Filter Menu instance remains untouched.
  2. Click on the close icon (x) in the top-right corner of the Recommendation Filter Menu window to close the window.
    • Alternatively, click on the filter icon () to close the Recommendation Filter Menu window.

Filtered Sections and Options

If the filter section is not applicable to the current displayed report, the section is hidden in the Recommendation Filter Menu. The summary table below describes all filter options and their availability.

Table: Recommendation Filter Option Summary

Sub-Section

Description

Filter Options

Available In

Public Cloud





Filter the results to show only systems from a specific public cloud platform. This filter option only applies to the Optimization Overview report, which containsyour aggregated cloud services across different cloud platforms.

When selecting a single cloud platform and any other option in the Recommendation Filter Menuyou will see full list of all supported service types, even if they have been filtered out. eg. if you filter on Scale Groups, you will still see both EC2 and RDS shown on the chart, but the values are set to 0.

Settings that are defined on the Summary tab are retained and used on the Data tab. These settings are not retained when you drill down to a specific cloud optimization page.

  • AWS
  • Azure
  • GCP
  • Optimization Overview > Summary Tab | Data Tab

Service Type



Filter the results to show specific cloud service types, such as compute instances, database instances, or instance scale groups.

  • Compute
  • Databases
  • Scale Groups
  • Optimization Overview > Summary Tab | Data Tab

Overall Status



Filter the results to show services with specific overall status.

For a description of overall status, seeViewing Cloud Optimization Reports.

  • Savings Opportunity
  • Optimal
  • Identified Risk
  • Optimization Overview > Summary Tab | Data Tab
  • RDS
  • Auto Scaling Groups
  • Spot Instances

Optimization Type



Filter the results based on the recommended right-size Optimization Type.

For Optimization Type descriptions, see Optimization Type Descriptions and Color-Coding.

  • Terminate
  • Modernize
  • Modernize - Optimal Family
  • Downsize
  • Downsize - Optimal Family
  • Just Right
  • Upsize
  • Upsize - Optimal Family
  • EC2
  • RDS
  • Auto Scaling Groups
  • Spot Instances
  • Virtual Machines
  • Compute Engine
  • Downscale
  • Upscale
  • Optimization Overview
  • Auto Scaling Groups

Effort Required



Filter the results to only show certain estimated effort (to implement the recommendations) based on cost analysis.

  • None
  • Very Low
  • Low
  • Moderate
  • High
  • EC2
  • RDS
  • Auto Scaling Groups
  • Spot Instances
  • Virtual Machines
  • Compute Engine

Cost Impact

Monthly Savings

Filter the results of systems to only show the total monthly savings for each group if they are above or below a specified amount. The monthly savings amount entered must be between -$999,999 and $999,999. The savings can be negative if instances showing risk are included in your selection.

  • Above $__________
  • Below $__________
  • RDS
  • Auto Scaling Groups
  • Spot Instances

Deferred Recommendations



Filter systems based on whether to defer recommendations until reserved instance coverage expires.

  • Yes
  • No
  • EC2
  • RDS
  • Auto Scaling Groups

Reports Supporting the Recommendation Filter Menu

The Recommendation Filter Menu is available for the following public cloud reports:

  • AWS > EC2
  • AWS > RDS
  • AWS > Auto Scaling Groups
  • AWS > Spot Instances
  • Azure > Virtual Machines
  • GCP > Compute Engines
  • Optimization Overview

See the Available In column in the Table: Recommendation Filter Option Summary for the optimization reports that support the various filters.

Refer to Viewing Cloud Optimization Reports for details on the public cloud optimization reports listed above. Refer to Viewing the Optimization Overview Report for details on the Optimization Overview report from the Public Cloud menu.
