AI Analysis Details Tab

AI Analysis Details Tab

#380xxx

The AI Analysis Details page displays detailed information for the selected scope of data.

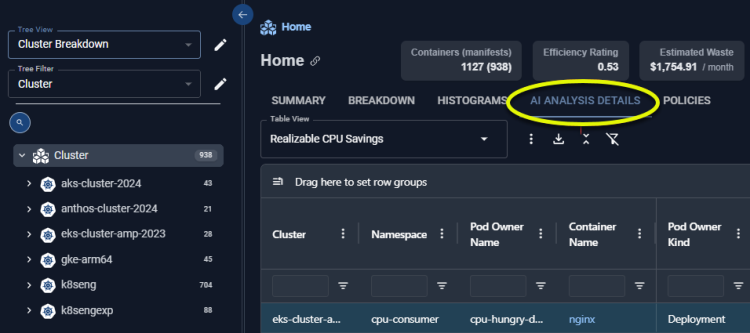

Figure: Locating the AI Analysis Details Tab

This page consists of:

  • A tabular report—A configurable tabular report is shown in the top pane. Descriptions of each column are provided in AI Analysis Details Columns.
  • Utilization Charts—Based on the container selected in the top pane, the corresponding utilization charts are shown on the lower pane. See AI Analysis Details Charts.

Note:  Containers that do not have adequate collected data for recommendation analysis are not included on this page.

Searching for Systems

You can search the table for a specific system or set of systems. Kubex only searches the scope of systems that are currently displayed.

  1. Enter your search criteria in the search bar, located in the upper right of the page.
  2. The table contents update as you enter your search parameters.
  3. Click the X in the search box to clear the search parameters.

Kubex only searches the scope of systems that are currently displayed. You may need to expand your scope of systems if your systems are not found.

Column Filters

You can apply various filters to customize the scope of containers you are reviewing in the table. See Using Filters.

Exporting Table Views

You can export tabular reports from this tab to Microsoft® Excel.

  1. Select the table view and adjust views and filters to obtain the desired set of data.
  2. Click the export icon, located beside the Table View drop down menu.

Figure: Export Icon

Table View

Select a pre-configured table to view analysis results applicable to your specific use case. Each table has only the applicable columns enabled and filters have been set to include only systems that meet the criteria.

Details of all columns are provided in AI Analysis Details Columns.
